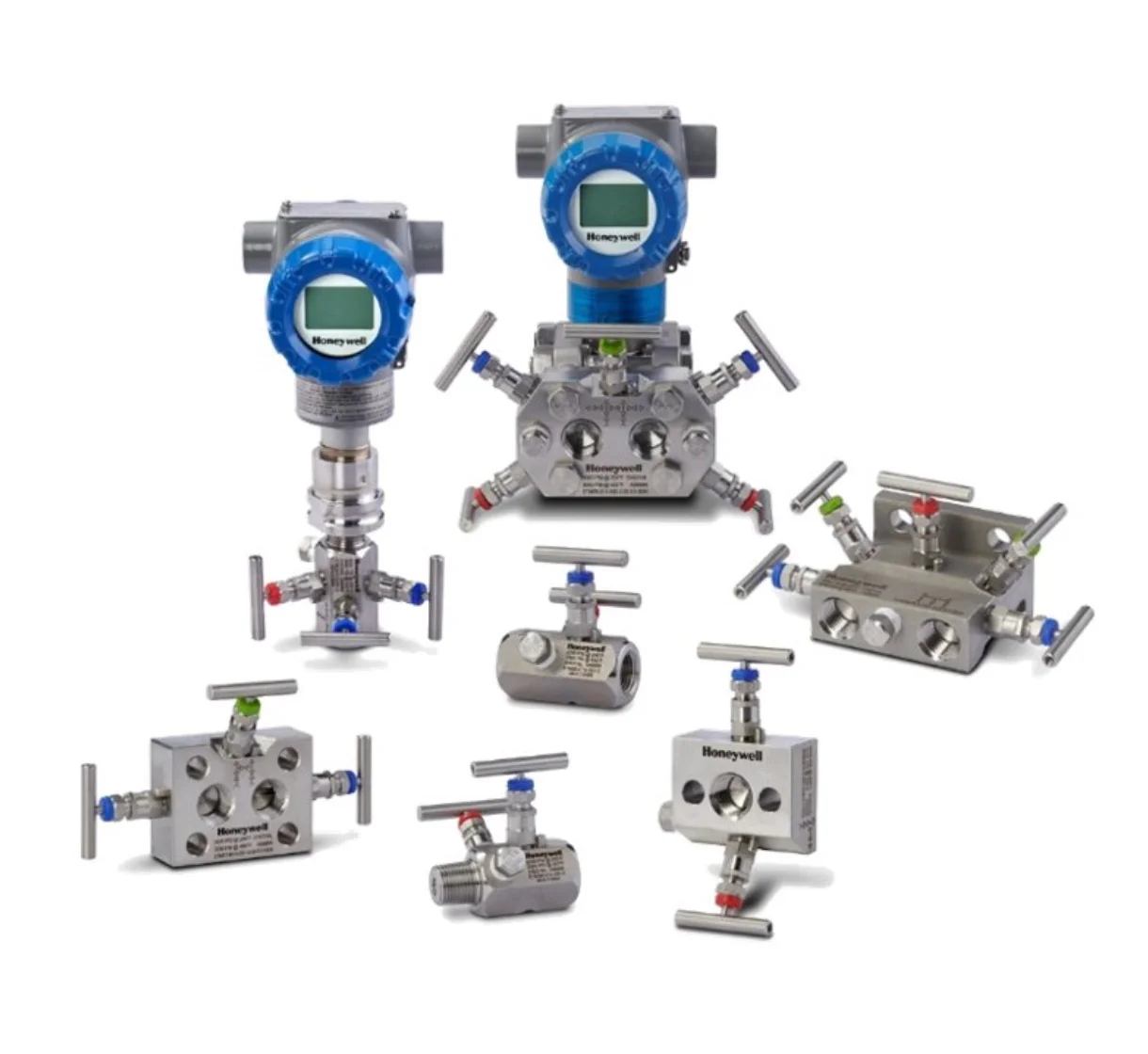

SmartLine Manifolds
Honeywell SmartLine Manifolds are a perfect complement to SmartLine Pressure transmitters, providing factory tested, calibrated and certified equipment for accurate, reliable and safe measurement in process applications.
Downloads
Key Benefits
- 01Destructive tested to 4× “Over Pressure” (per ASME VIII, B31.1, B31.3 standards) for reliable and safer operations in the field
- 02T-bar valveheads with hidden screw for smooth, hassle-free valve operation
- 03No short handles for effortless valve operation
- 04Ergonomic valvehead placements to avoid “pinching fingers”
Technical Features
- 01Available for the entire range of SmartLine Pressure Transmitters
- 02Block and Bleed models for in-line transmitters
- 032, 3 and 5-valve manifold configurations for dual head AP, GP and DP transmitters
- 04Wide and compact body styles
- 05Traditional and wafer style variants
- 06Available in various materials including NACE compliant materials of construction
- 07Every unit is factory leak tested
- 08Available with manifold mounting brackets
- 09Factory integration option with transmitter for hassle-free experience
- 10Various certification options
- 11Full material traceability
- 12All stainless steel SmartLine manifolds are SS 316/316L dual grade certified; all non-wetted components are SS316/316L
- 136000 psi pressure version available
- 14PTFE: Maximum pressure 413 bar (6000 psi) at -40 to 100°C (212°F); 206 bar (3000 psi) at 215°C (420°F)
- 15Graphite: Maximum pressure 250 bar (3625 psi) at -40 to 100°C (212°F); 155 bar (2250 psi) at 450°C (842°F)
