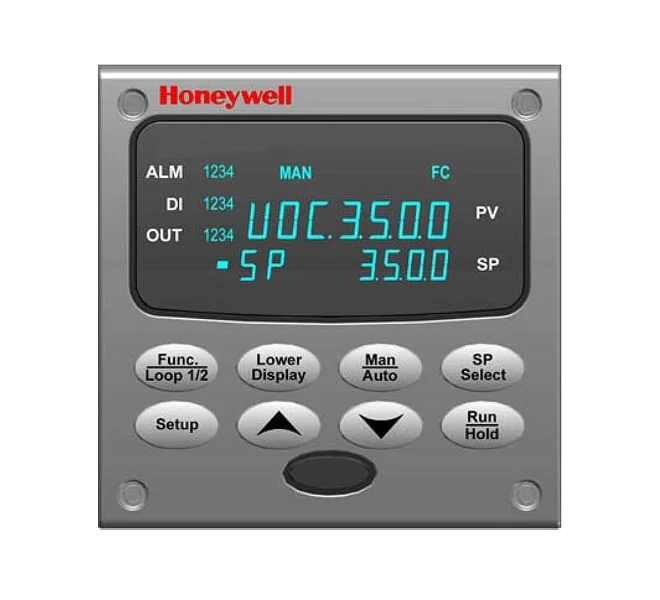

Honeywell Digital Controllers cover the DC1000, UDC700, UDC1200/UDC1700, UDC2500, UDC3200, and UDC3500 families — microprocessor-based PID and ON/OFF controllers available from 1/32 DIN to 1/4 DIN form factors. They accept universal analog inputs (thermocouple, RTD, linear voltage and current) and are applied to temperature, pressure, and level control across furnaces, ovens, environmental chambers, plastics processing, and packaging machinery.

Downloads
Key Benefits
  • 01Single controller family from 1/32 DIN to 1/4 DIN fits any panel footprint
  • 02Universal analog inputs eliminate model juggling for different sensor types
  • 03Accutune III™ tuning with fuzzy logic overshoot suppression (UDC2500/3200/3500)
  • 04Infrared PC & Pocket PC configuration without opening the panel (UDC2500/3200/3500)
  • 05Downward compatibility with legacy UDC1000/1500/2300 installations
Technical Features
  • 01Model range: DC1000 (1/16–1/4 DIN), UDC700 (1/32 DIN), UDC1200 (1/16 DIN), UDC1700 (1/8 DIN), UDC2500/3200/3500 (1/4 DIN)
  • 02Microprocessor-based PID, ON/OFF, Heat/Cool, and motor-position control algorithms
  • 03Universal analog inputs: thermocouple, RTD, mA, mV, V, and Radiamatic (higher-end models)
  • 04Input accuracy down to ±0.10% of full-scale (UDC3500)
  • 05Fast 166 ms scanning rate on UDC2500/3200/3500
  • 06Up to 3 universal analog inputs and 7 analog/digital outputs (UDC3500)
  • 07Two loops of control or cascade operation (UDC3500)
  • 08Math functions: feedforward summer/multiplier, ratio/bias, square root
  • 09RS-422/485 Modbus RTU and Ethernet 10Base-T TCP/IP Modbus (optional)
  • 10Dual 4-digit LED displays with multi-language prompts (English/French/German/Spanish/Italian)
  • 11Configurable digital filter 0–120 seconds for input signal damping
  • 12NEMA 4X / IP66 front-face protection (UDC2500/3200/3500); NEMA 3/IP65 (UDC1200/1700)
  • 13Universal AC power supply 90–264 VAC 50/60 Hz; optional 24 VAC/DC
  • 144-digit security code and EEPROM non-volatile memory (100+ year retention)
  • 15Field-upgradeable optional features without unit replacement
  • 16UL, CE, and CSA approvals
Applications
  • Furnaces, ovens, and heat-treat equipment
  • Environmental and climatic test chambers
  • Plastics processing machines (extruders, injection molding)
  • Packaging machinery and sealing equipment
  • Painting, coating, drying, and curing lines
  • Food and beverage processing
  • Semiconductor packaging and testing
