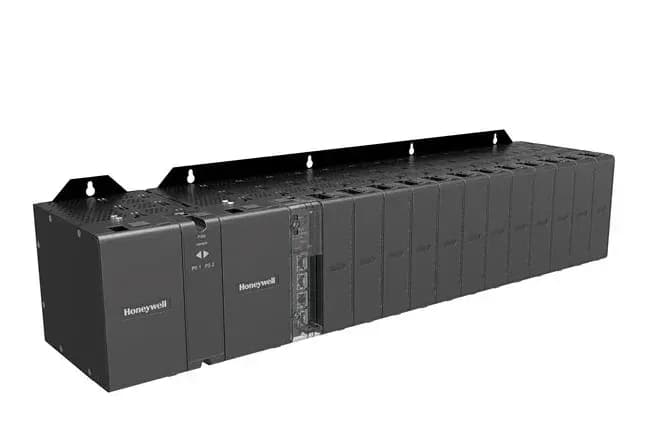

Honeywell ControlEdge™ PLC is an advanced Programmable Logic Controller built on IEC 61131-3 programming with HART-enabled Universal I/O, native controller redundancy, and tight integration with Experion® DCS, SCADA, safety systems, and Field Device Manager (FDM). Rack-based modular hardware with remote configuration and firmware updates, designed for greater flexibility, lower configuration effort, and best-in-class cyber security.

Downloads
Key Benefits
  • 01First PLC with HART-enabled Universal I/O for configuration flexibility
  • 02Native controller redundancy and optional redundant power supplies
  • 03Tight integration with Experion DCS, SCADA, safety systems, and FDM
  • 04Built-in Control Firewall, Secure Boot, and Secure Communication
  • 05IEC 61131-3 programming with remote configuration and firmware updates
Technical Features
  • 01Dual Core ARM® Cortex™-A9 32-bit processor at 667 MHz
  • 0210 MB user programming memory (5 MB program + 5 MB data)
  • 03SD card support up to 32 GB (Class 6 / Class 10)
  • 04I/O scan time: 1 ms
  • 05Controller switchover: 10 ms to 3000 ms, adjustable per control strategy
  • 06Real-time clock with 2 weeks retention after power loss (no battery required)
  • 07Up to 144 I/O modules, 2304 analog channels, 4608 digital channels per controller
  • 08Up to 12 expansion I/O racks with redundant controller
  • 094 Ethernet ports per CPM (10/100BaseTx, auto-crossover, shielded RJ45)
  • 10Protocols: MODBUS TCP, OPC UA, HART-IP, CDA, Modbus ASCII/RTU
  • 11Embedded Firewall and IPsec support on Ethernet ports 1 & 2
  • 12Universal I/O (UIO), Universal AI, High-Level AI 16-ch, Analog Output 4-ch
  • 13Digital I/O modules: 24 VDC, 120/240 VAC, relay, and pulse/frequency/quadrature
  • 14Removal and Insertion Under Power (RIUP) for CPM and I/O modules
  • 15Fail-safe state configuration on output signal type
  • 16Power supply options: 58 W 24 VDC or 110/240 VAC
  • 17Operating temperature: 0 to 60 °C (32 to 140 °F)
  • 18Storage temperature: -40 to 70 °C, humidity 5% to 95% non-condensing
  • 19Approvals: CE, UL, cUL, FM, CSA, ATEX, ISA Secure Level 2
Applications
  • Process automation tightly integrated with Experion DCS
  • Supervisory Control and Data Acquisition (SCADA) systems
  • Third-party equipment integration: motors, drivers, and compressors
  • HART-based field instrumentation with function block support for all HART commands
  • Remote Terminal Unit (RTU) applications with secure communication
